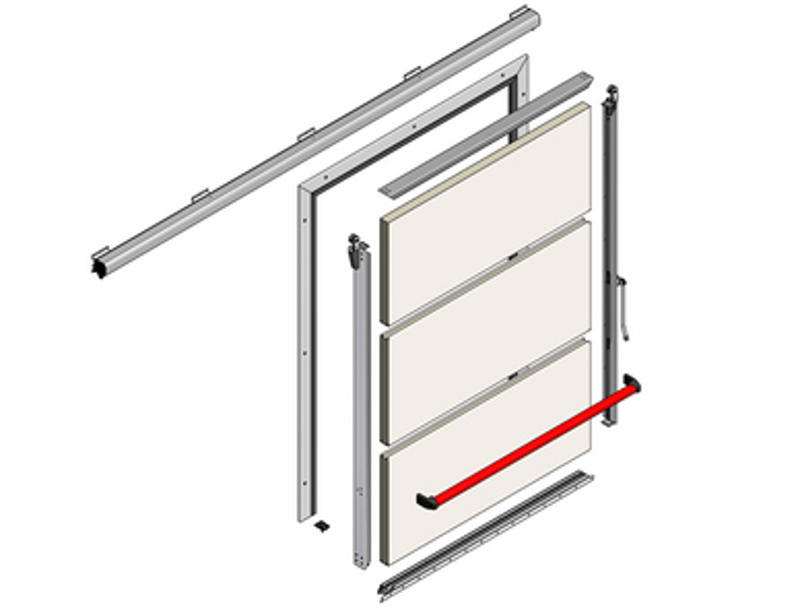

Kit for CA door. Totally made-to-measure, EXCLUDING door leaf, suitable for sizes using 100mm sandwich panels. Finished all round with anodized aluminium profiles, thermal bridge-free. Equipped with an aluminium drop/lift rail system.
- Specially for export. Easy to transport and favourably priced.
- All components made-to-measure and pre-assembled.
- Easy to assemble and fix. Detailed instructions included.
- Both horizontally and vertically available.Manually or electrically operated.
- Also in very large sizes.
- Deliverable with a polyester door leaf in two parts.
CA version
- 100% gas-tight due to unique infl atable profile system. Even in case of any wall and floor distortions and irregularities.
- Optional CA window in door.
- 30 years worldwide experience
Electrical operation type DC-1500 (horizontal)
- According to CE-standard.
- Soft start/soft stop.
- Easily programmable.
- Compact (17,5 x 17,5 x 10,5 cm (w x h x d)).
- Standard equipped with automatic closure.
- Opening speed max. 0,9 meter/sec.
- Various potential-free contacts.
- Also available with pull-switches, remote control, radar and more.
Rail system type SRA (horizontal)
- Anodized aluminium drop/lift rail system with dust cap.
- For door leafs up to 250 kg.
- Manually or electrically operated (option).
- Quick and easy installation.
Rail system type SR (horizontal)
- Electrolytic galvanized steel drop/lift rail system.
- Deliverable with dust cap (option).
- For door leafs up to 800 kg.
- Manually or electrically operated (option).
