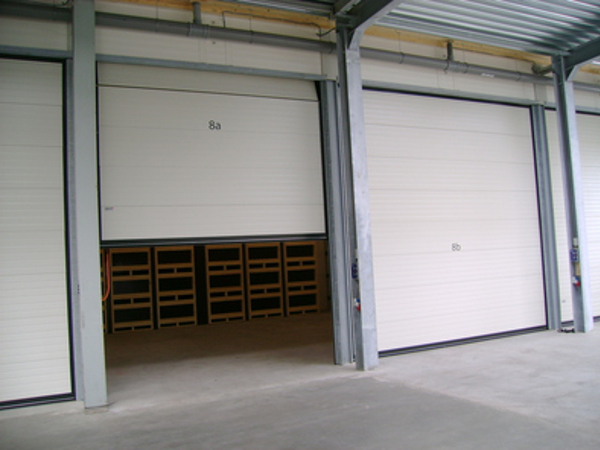

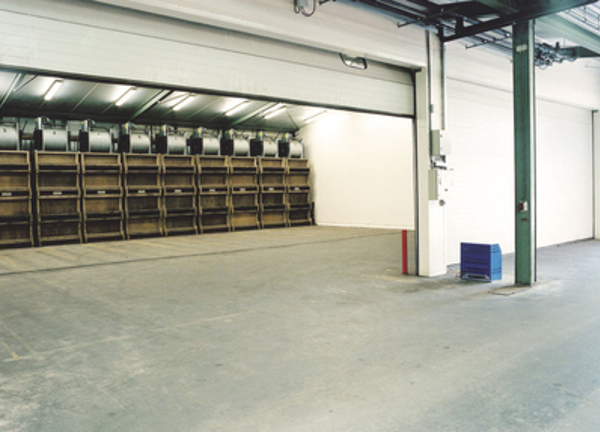

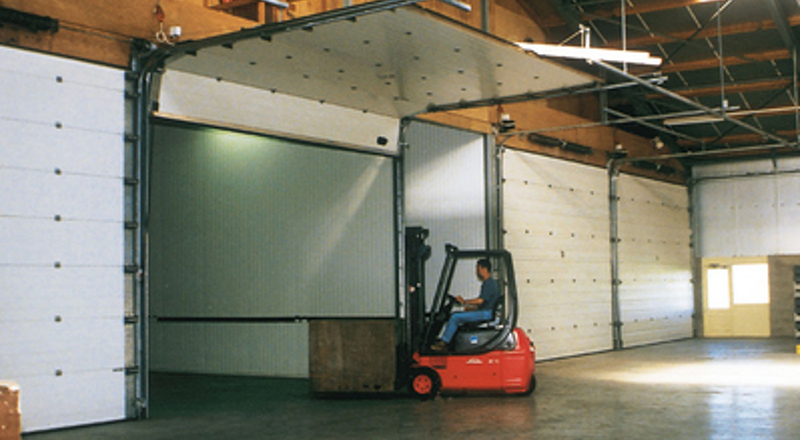

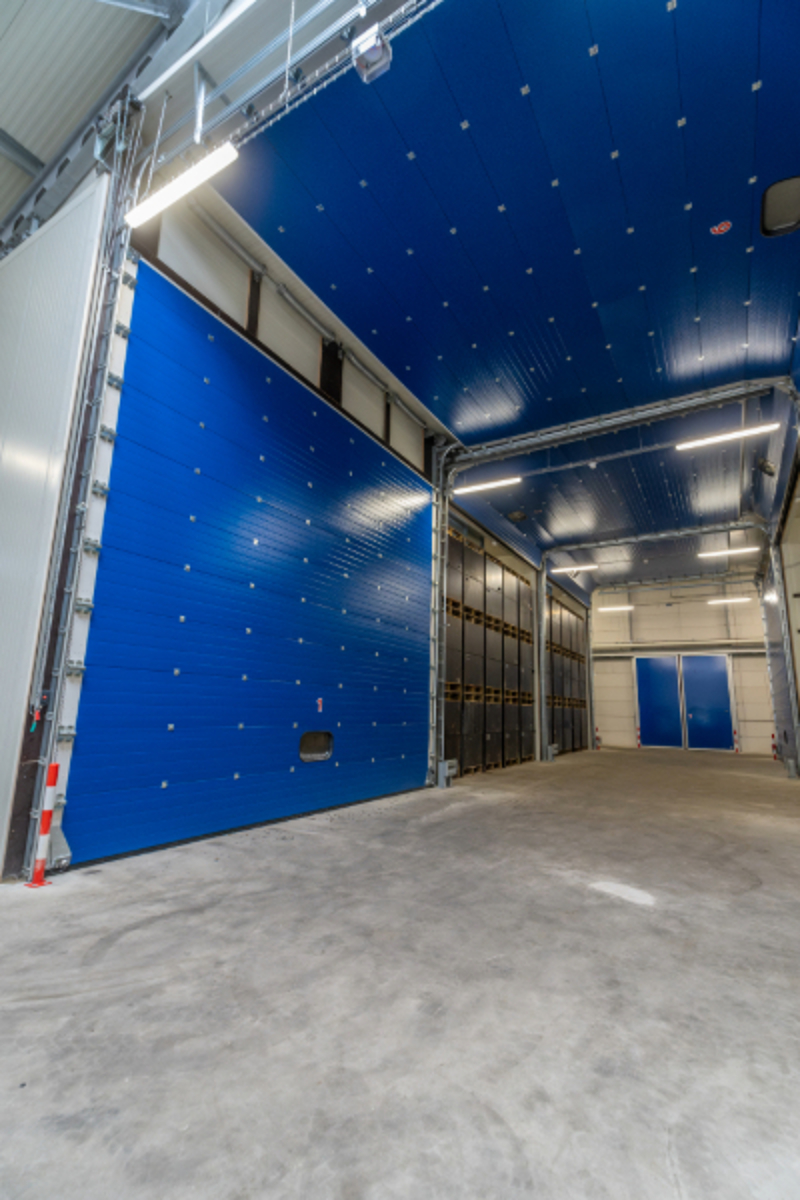

Overhead door T-280K

80mm sandwich panels

Door leaf constructed of steel sandwich panels with a core of 80mm polyurethane,
guided in a steel rail system.

  • Door in thermal bridge-free finish.
  • Highly insulated (suitable for cold stores).
  • Available with windows or Full Vision panels at additional price.
  • Large sizes possible.
  • Suitable almost everywhere.
    Large selection of rail systems.
  • Accessibility to total width of cold store.
Closing
Bolt (manually operated).
Seal
All round by means of rubber profiles.
Color panels
Standard colour RAL 9002 (light grey). Door leaf finished in colour to be specified at additional price
Surface texture
Stucco exterior and interior.
Operation
Manually operated. Chain or electrical operation at additional price.
Rail system
Normal ceiling system (min. built-in clearance 500mm). High-, low- or vertical ceiling system, whether or not following roof line, at additional price.
R-value panels
Approx. 3,75 (m².K/W)
Safety
Spring and cable break safety device fitted as standard. Safety edge and slack cable safety device included with electrically operated option.
Side guidance
Fully galvanized steel guiding construction. Fittings and track available in stainless steel at additional price.
Construction
Door leaf constructed of sandwich panels, covered on both sides with galvanized and coated steelplate. Thermal bridge-free finish.
Thickness door leaf
80mm
Glazing
Not included, door leaf completely closed. Windows or Full Vision panels available at additional price.
