Hinged Door

Blast Freezer Type

Composed of a 100 mm (Chiller and Freezer type) and 140 mm thick (Blast Freezer only) insulated core with polyester coating on both sides, these hinged doors are lined with anodised aluminium profiles, consisting of thermal breaks to prevent heat bridges. Fabricated with galvanised steel/plastic rising hinges, they also come with an emergency unlocking device. The freezer design is provided with frame heating in the door frame and threshold, with glazing also available as an additional option.

  • Choice of colours - subject to availability
  • Double Leaf hinged door
  • Vision panel (depending on size of door)
  • Door closer
  • Panic bar
Closing

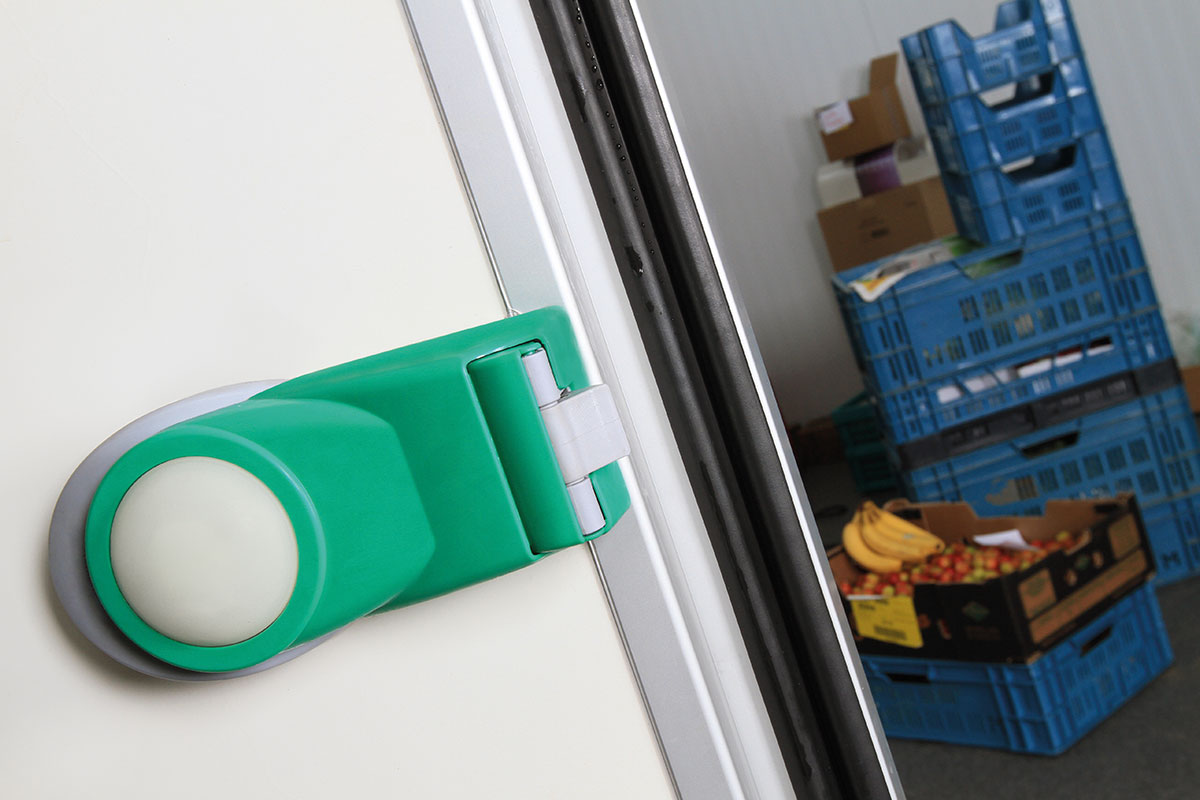

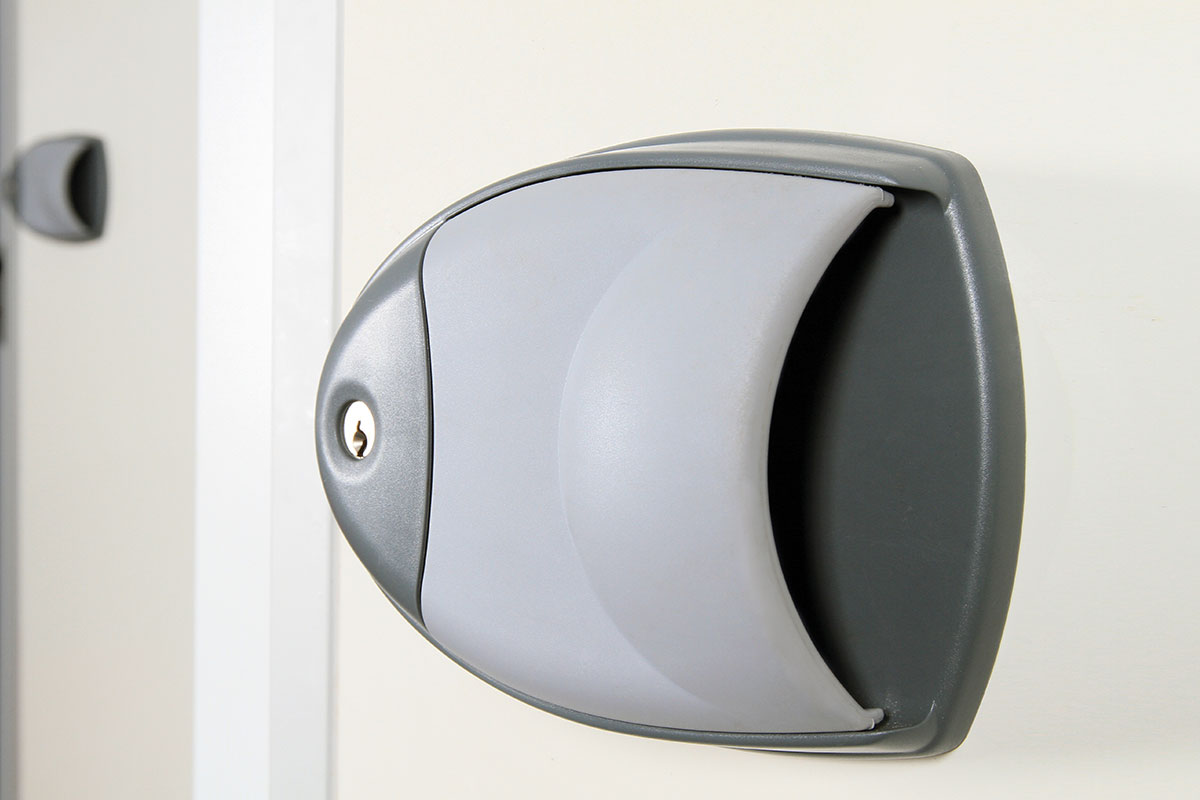

Key lock and internal safety release (push button)
Seal
Whole frame perimeter sealed by means of rubber profiles to prevent heat bridges
Door leaf color
Standard Colour RAL 9002
Fire resistance
Non fire-rated
Hinges
In composite material, low temperature and corrosion resistance. Adjustable in three directions, theft-proof pin and tamper-proof fixing with door closed. Auto- lubricating hidden ramps
Frame heating
Heating cord included in three sides of the door frame and four sides of the door leaf for blast freezer type
R-value panels
Approx. 6.67 (m²K/W)
Construction
Door leaf constructed of fire-resistant polyisocyanurate (PIR) insulation material with foam density of 40kg/m³ . Covered on both sides with 0.5 mm PPGI steel flat sheet with polyester coating
Thickness door leaf
Temperature Applications Door Leaf Thickness 140 mm for blast freezer
Door frame
Anodized aluminium profiles with a complete thermal break, fitting to the wall
Wall frame
Anodized aluminium profiles with thermal break
