Air Lock Doors

Vertical or Horizontal Sliding

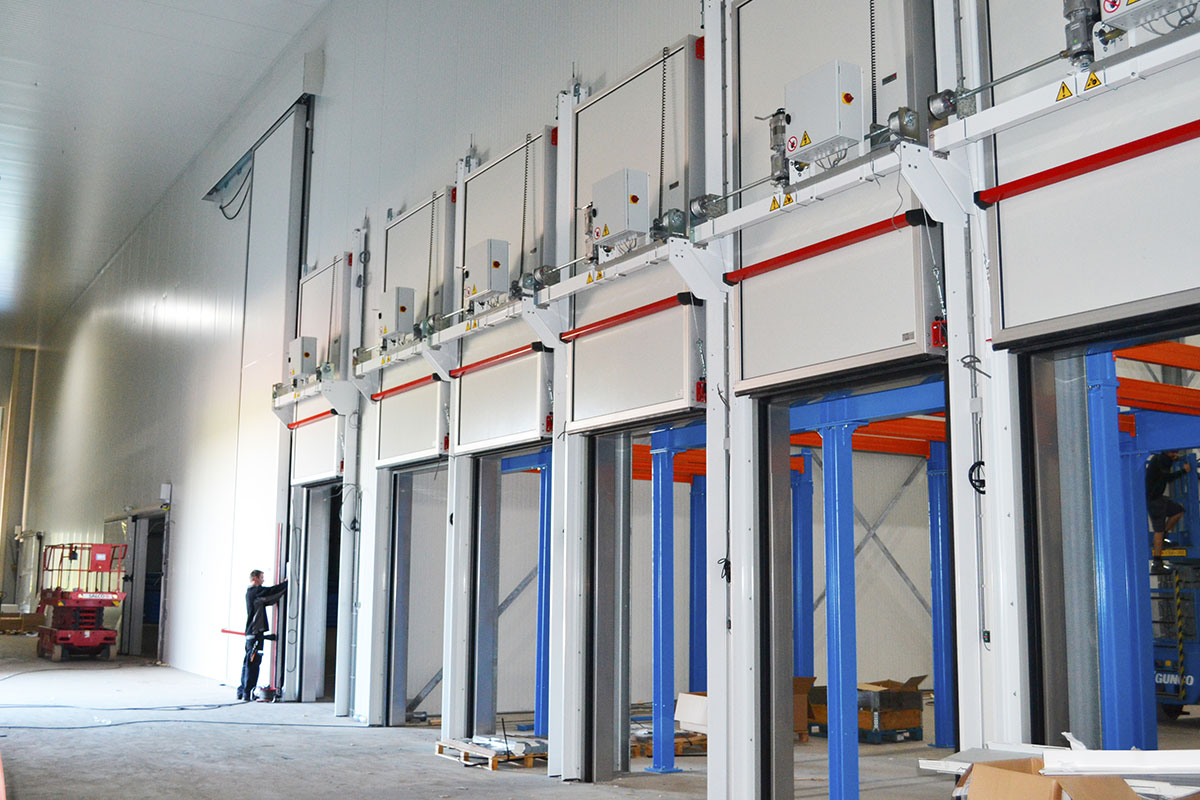

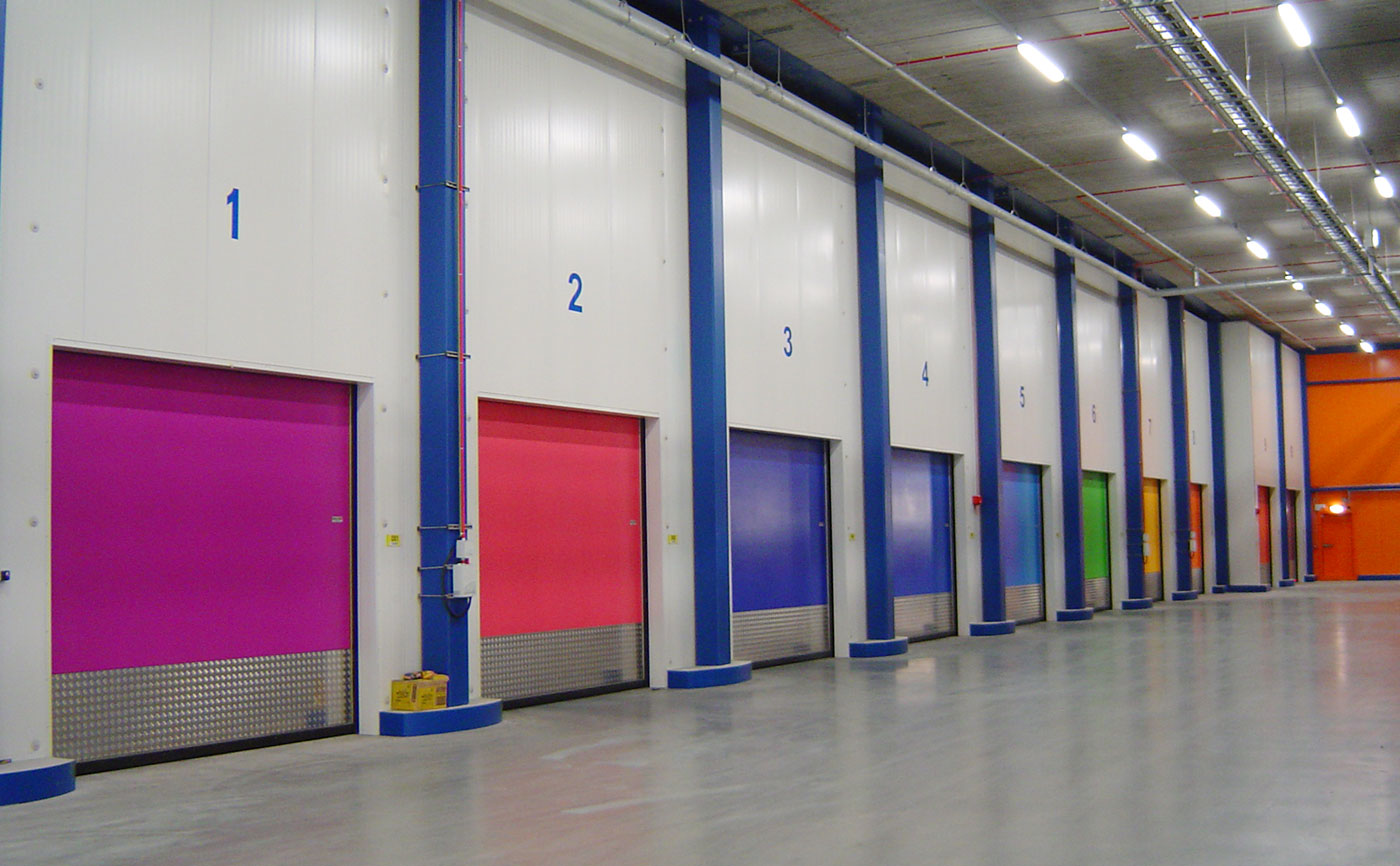

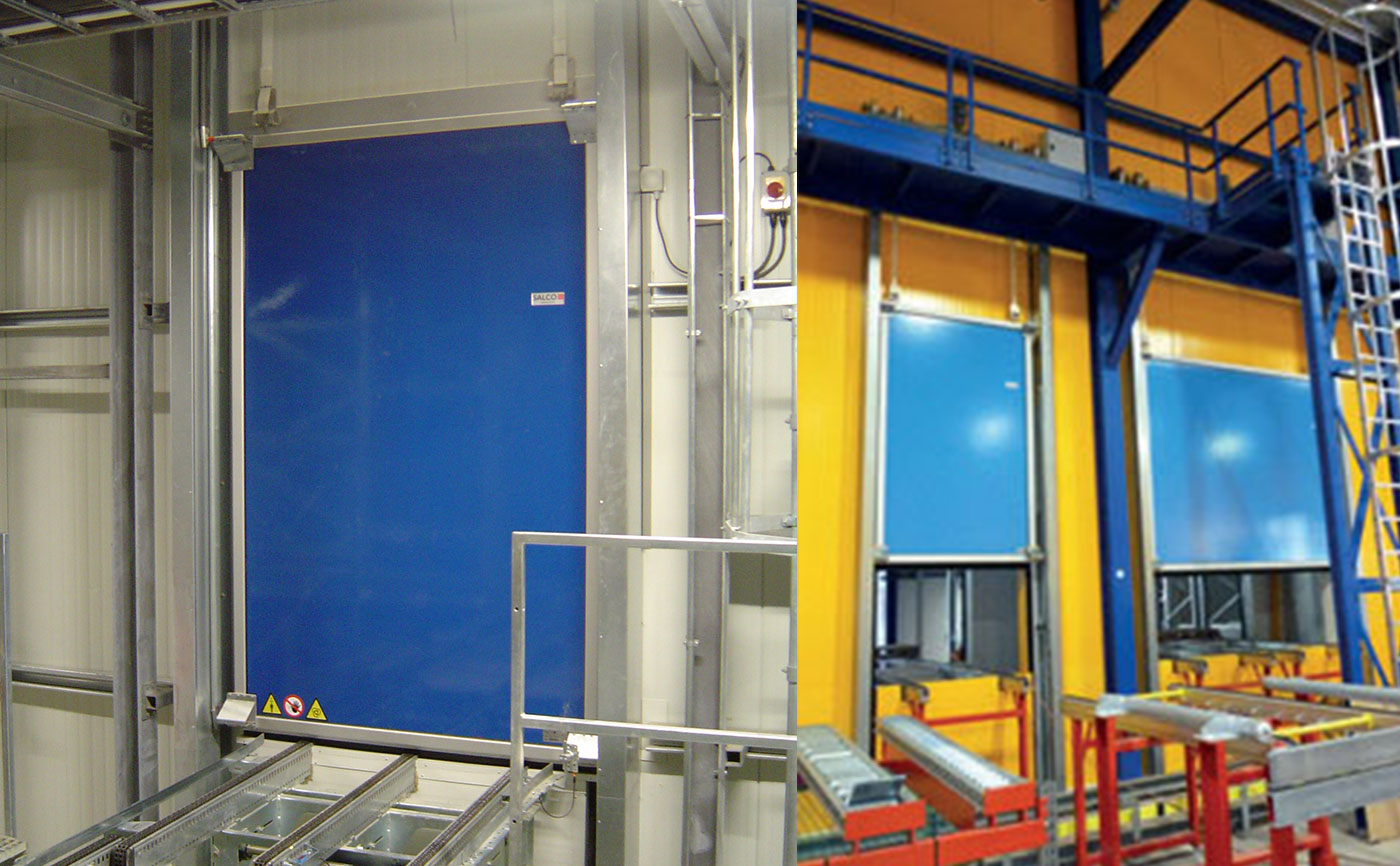

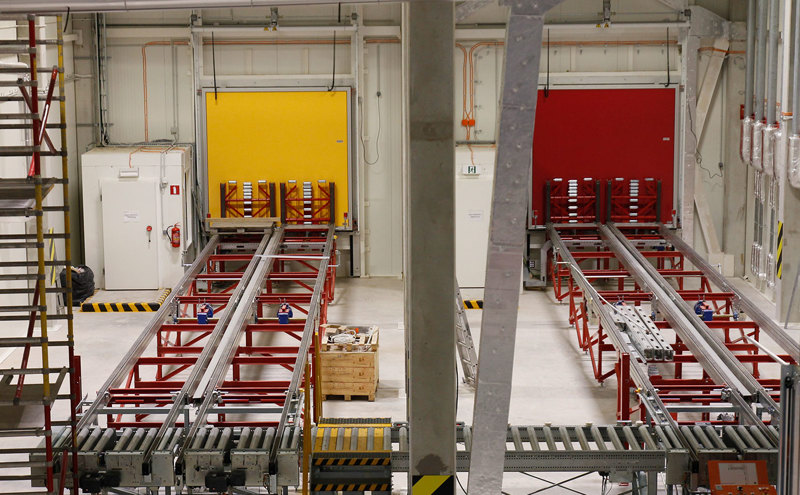

Modern transport systems in high-bay cold storages or warehouses require very high opening and closing door speeds to prevent the entry of warm air, and oxygen as well in some cases, from outside. SALCO’s fully automatic doors (both horizontal and vertical) can operate at extremely high speeds and are suitable for frequent use and easy integration into any transport system.

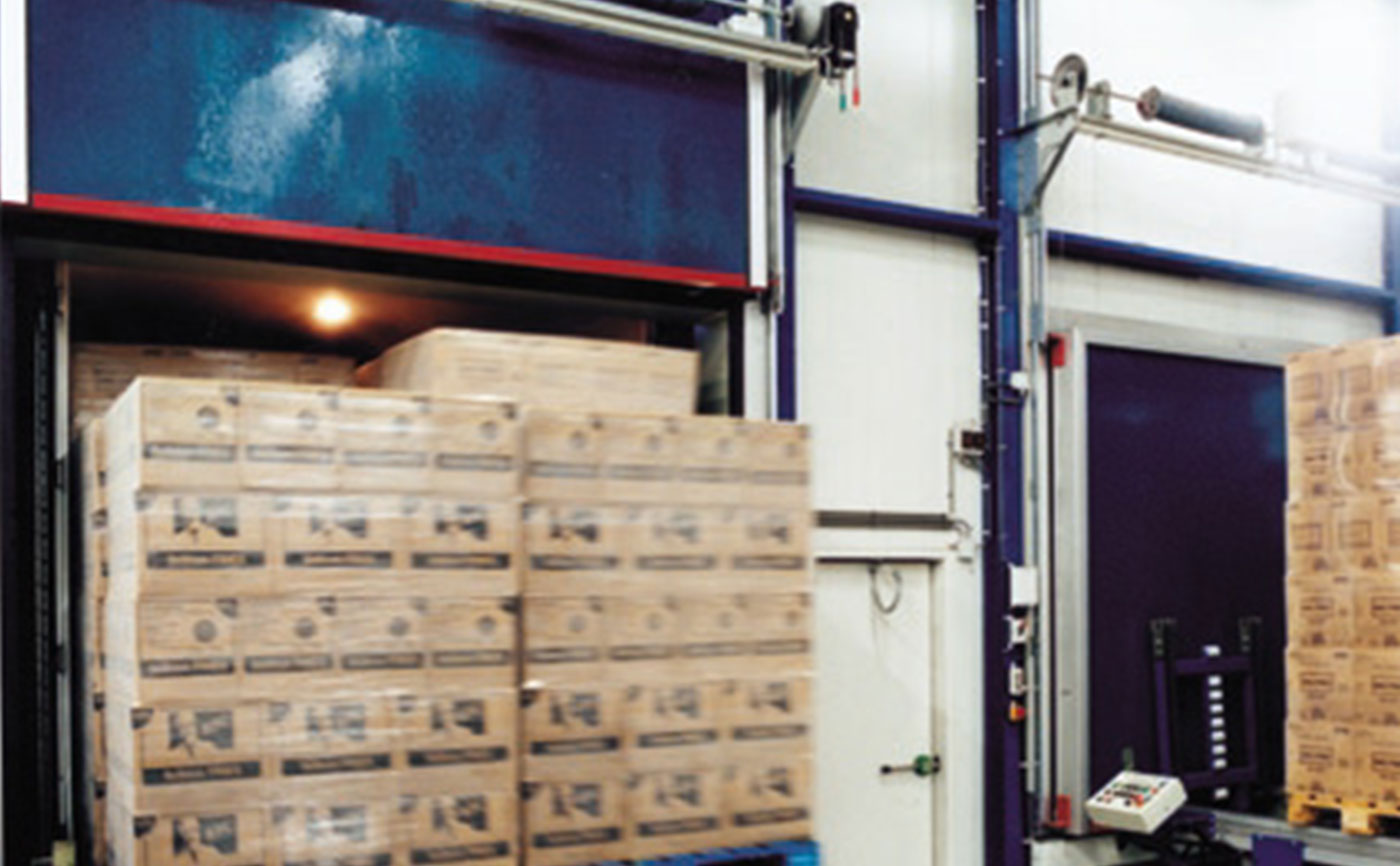

Our Air Lock Doors are perfectly suited for the storage of frozen goods, sensitive goods or perishable goods. These doors come in a wide variety of design specifications to suit any application. A hermetic seal makes the doors particularly suited for rooms where the oxygen percentage needs to be reduced from 21% to approximately 16% for fire safety purposes.

Clients can choose between a 100 mm thick door leaf (chiller door) and a 140 mm thick door leaf (freezer door) for the production of their fully automatic doors.

  • Equipped with a drop/lift rail system.
  • Purpose-built for frequently used doors which require very fast opening and closing speeds.
  • Various finishes and door thicknesses available, depending upon temperature fluctuation.
  • Air-tight closing.

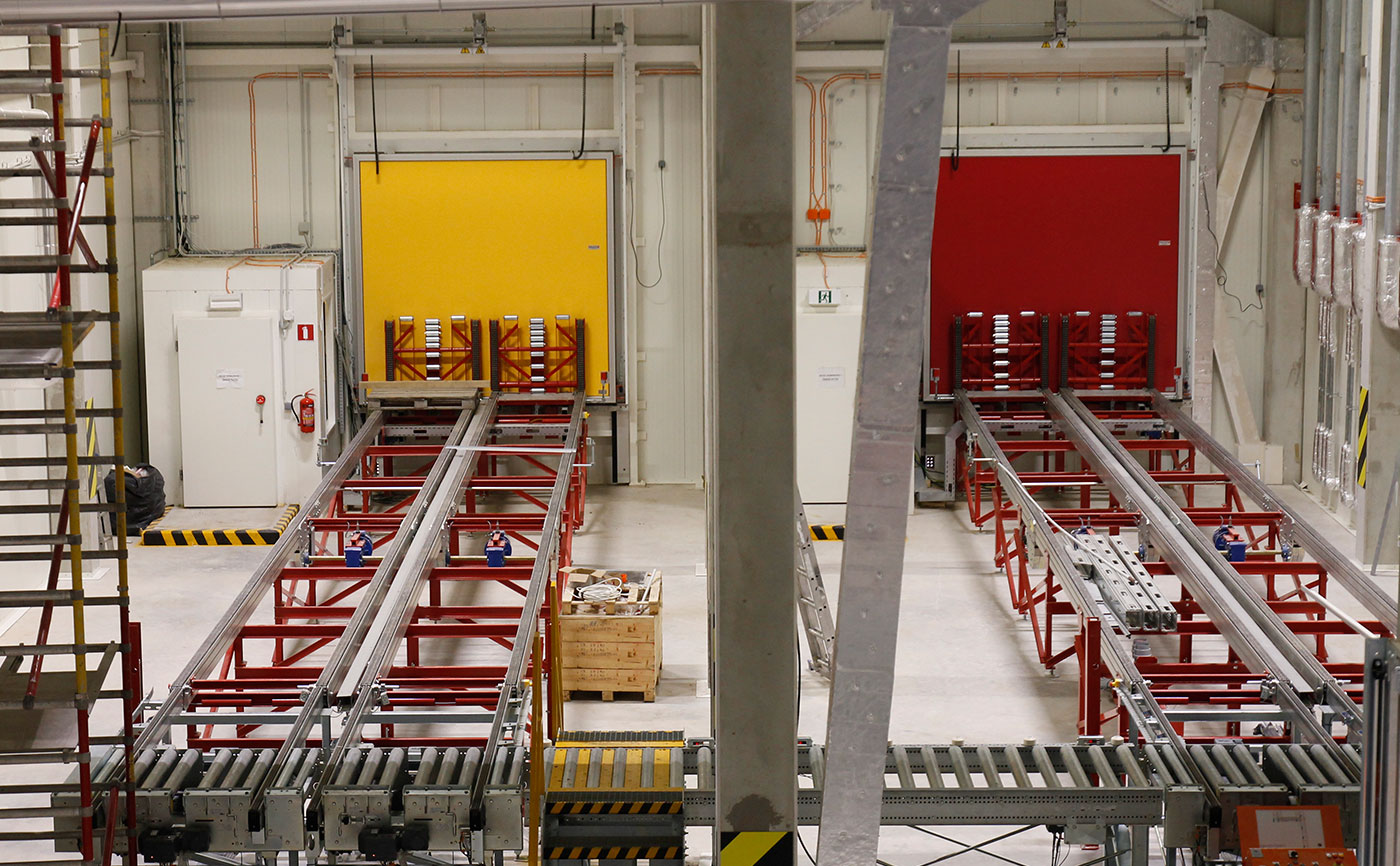

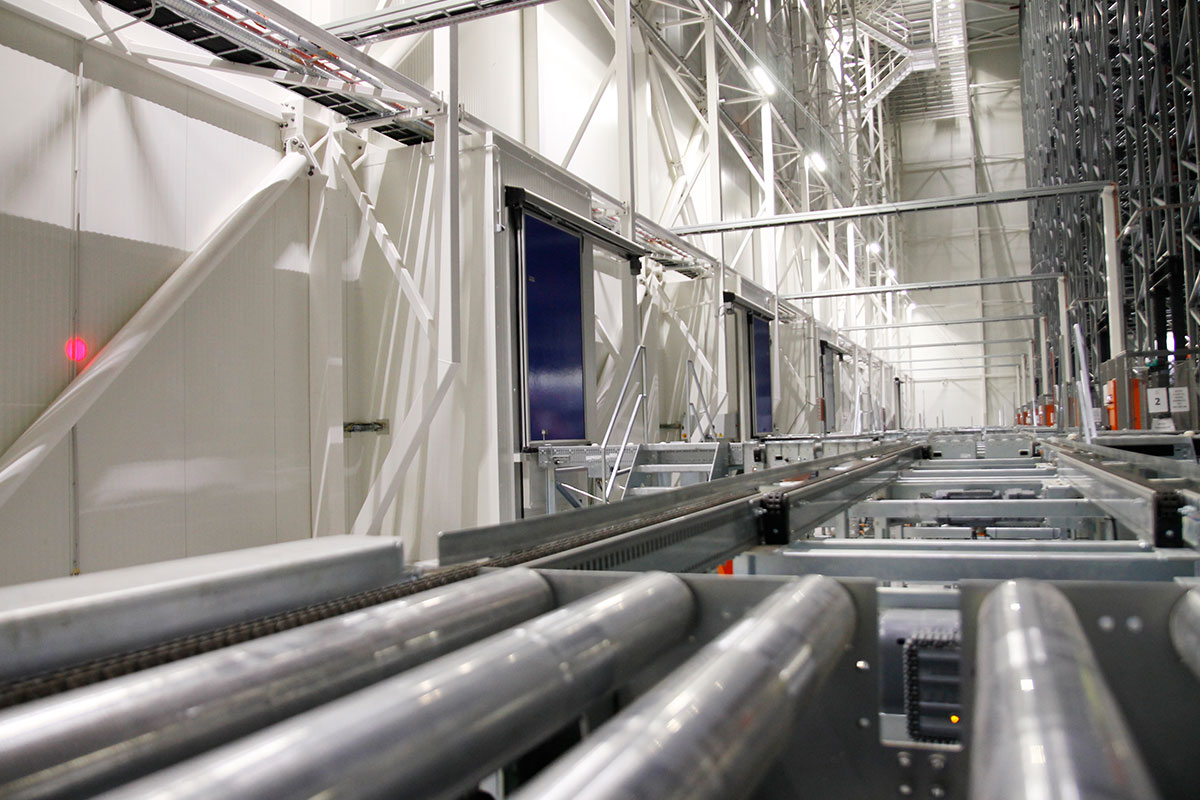

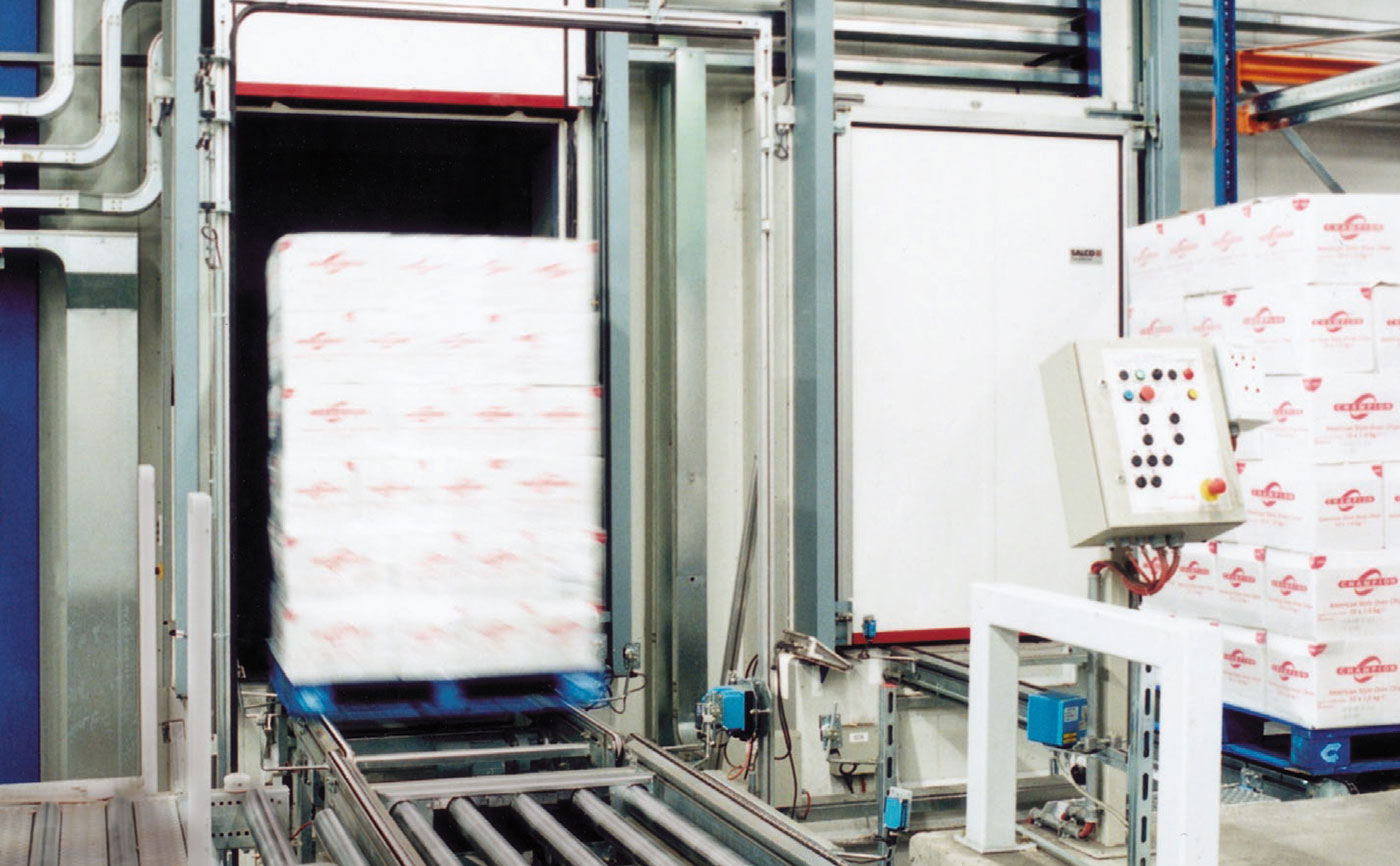

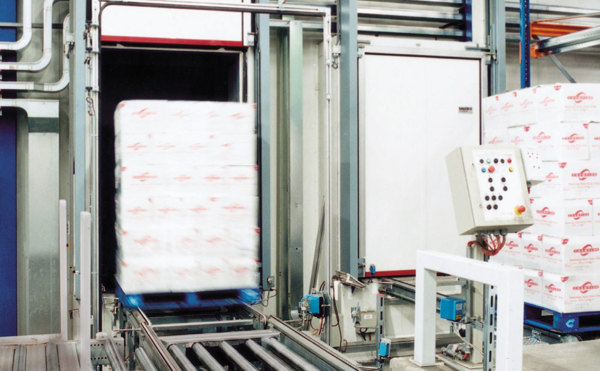

  • Easy to integrate into a conveyor system.
  • Option to access remotely with an ethernet connection for problem resolution.
  • Easy to reset in the event of an emergency.
  • Applicable in freezing temperatures.
  • Extremely reliable; backed by our experience and expertise.
  • Special threshold heater available upon application.
  • Stainless Steel door leaf sheet.
  • Special Stainless Steel version available.

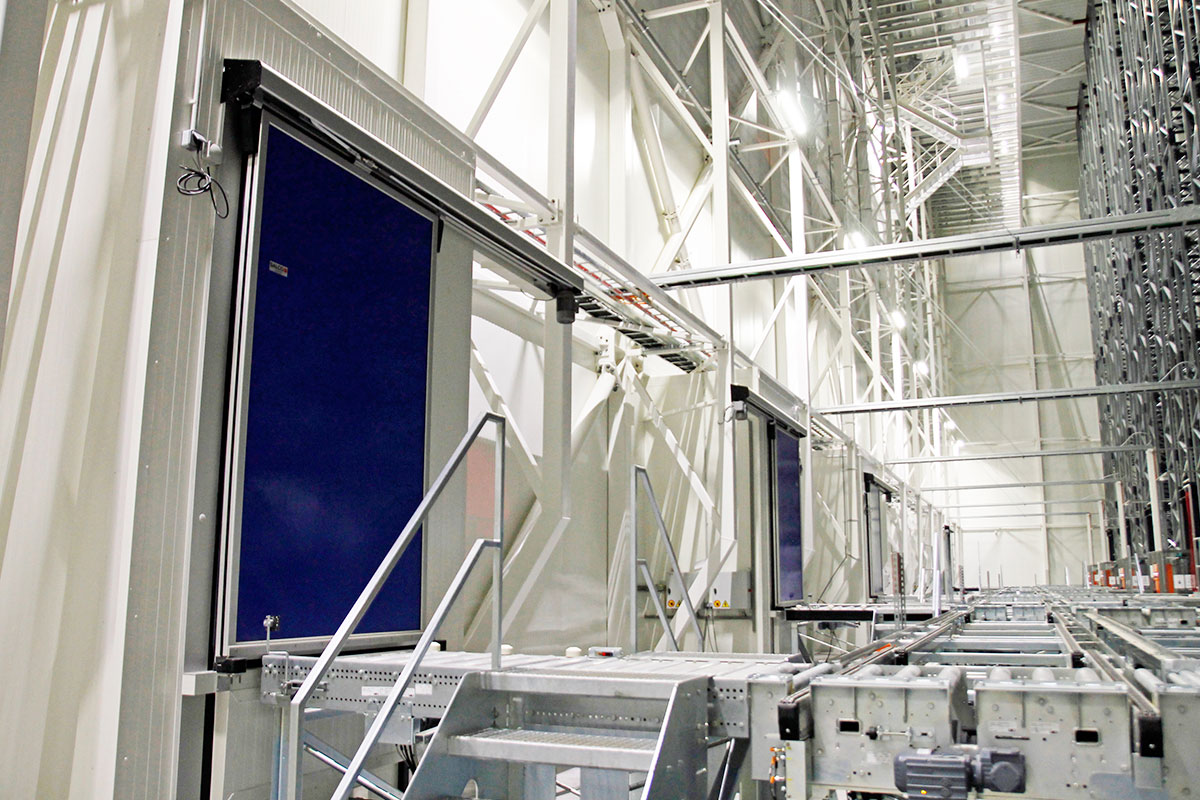

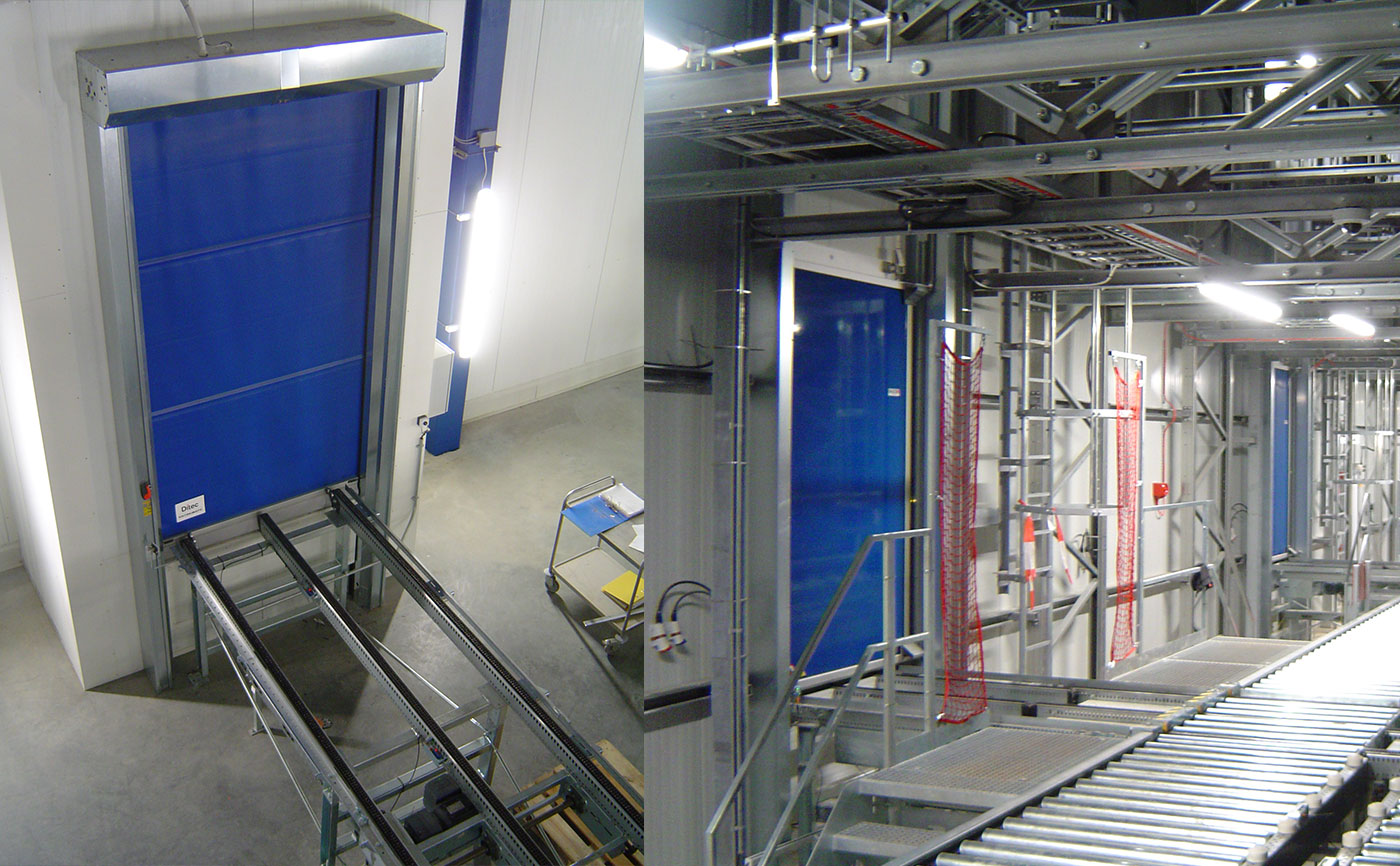

  • Can be horizontal or vertical sliding.
Seal
Whole perimeter sealed with rubber profiles.
Door leaf color
Standard colour - RAL 9002.
Threshold
Not included. Special thresholds available upon application (for freezer doors only).
Operation
Electrically operated at very high speeds, with the opening time dependent on the door's size. Not for staff/pedestrian use.
Openers / duds
Available inside and outside (for horizontal sliding doors only). Chain operated (for vertical sliding sliding doors only).
Frame heating
For freezer doors only.
Rail system
Anodised aluminium drop/lift rail system type SRA with dust cap horizontal sliding door only, galvanised guiding system with counterweights vertical sliding doors only.
R-value panels
Approximately 4.67 m2K/W (Chiller) or 6.67 m2K/ (Freezer)
Construction
Fire-resistant Polyisocyanurate (PIR) insulation material with foam density of 40 kg/m3. Covered on both sides with a 0.5 mm PPGI steel flat sheet with polyester coating.
Thickness door leaf
100mm (Chiller) or 140mm (Freezer)
Door frame
Anodised aluminium profiles with a complete thermal break fitting the wall.
Wall frame
Anodised aluminium profiles with thermal breaks to prevent heat bridges.
Additional options
Available inside and outside (for horizontal sliding doors only). Chain operated (for vertical sliding sliding doors only).
Technical specifications
